This product has been sold

ABB 2.5/3.5 MVA 6.3/0.4 kV

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

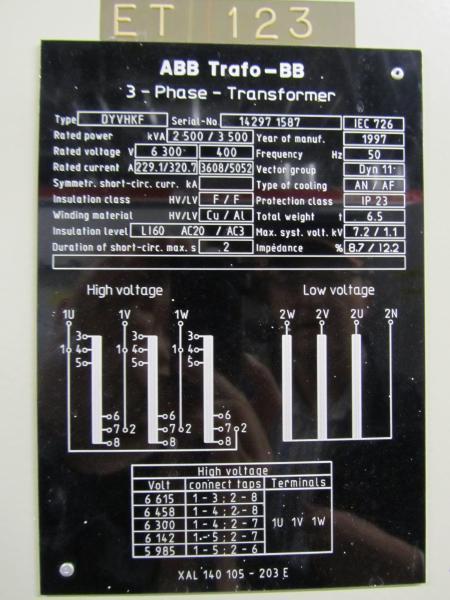

Technical specifications

Quantity1 pce
BrandABB Trafo-BB
Year of Manufacture1997
ConditionSecond Hand
Basic Transformer DesignResibloc (glassfibre reinforced)
Ingress Protectionincl. enclosure IPxx
ApplicationDistribution Transformer
Number of Phasesthree-phase
Winding MaterialCu/Al
Rated Power2500/3500 kVA
CoolingAN/AF
Voltage Ratio6300 / 400 V
HV Ins. Class (Um/AC/LI)7,2/20/60 kV
LV Ins. Class (Um/AC/LI)1,1/3/- kV
Voltage Regulationoff-circuit, bolted links
Tapping Range+-2×2.5%
Frequency50 Hz
Vector GroupDyn11
StandardsIEC 726
Impedance8,7 % at 2500 kVA
Total Weight6500 kg

Interested?

Ask more about this unit

We respond to all messages within 24 hours
