This product has been sold

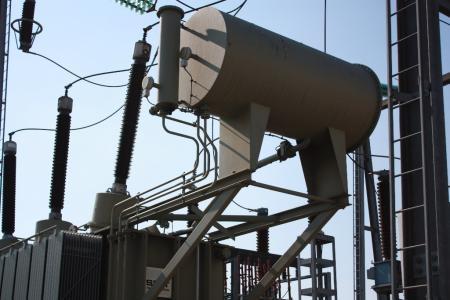

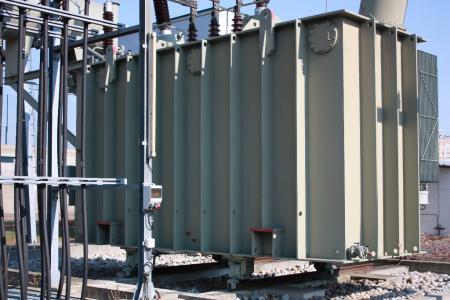

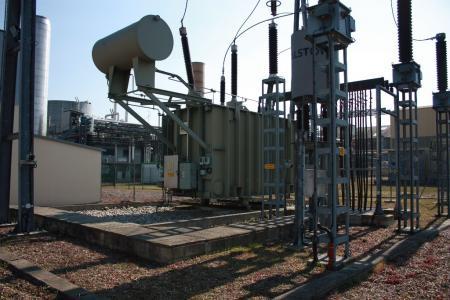

SMIT 40/55 MVA 253/11 kV YNd11

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

Technical specifications

Quantity1 pce
BrandSMIT
Year of Manufacture2000
ConditionSecond Hand
ApplicationPower Transformer
Basic Transformer Conceptoil-immersed, conservator tank
Tank DesignRigid tank, detachable cooling radiators
Number of Phases3-phase
Rated Power40000/55000 kVA
Method of CoolingONAN/ONAF
Voltage Ratio253000 / 11000 V
Voltage RegulationOn-load Tap Changer, 17 steps
Frequency50 Hz
Temperature Rise60/65 K
ConnectionYNd11
StandardsIEC 60076
Total Weight~109 000 kg
Weight of Oil~29 780 kg
Regulation Range of OLTCPos. 1
