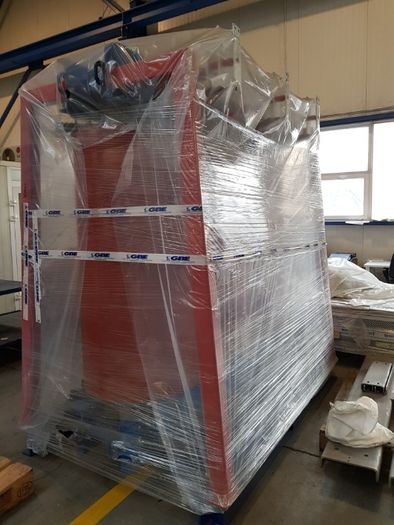

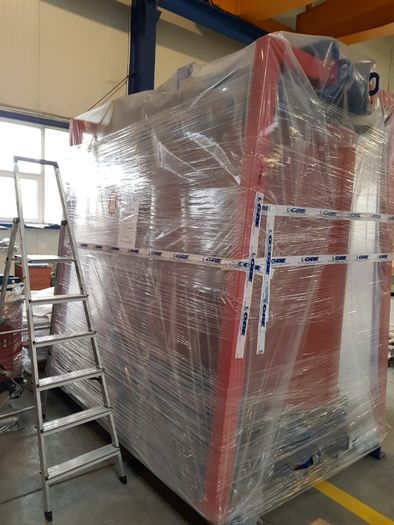

GBE 2500 6/0,4kV

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

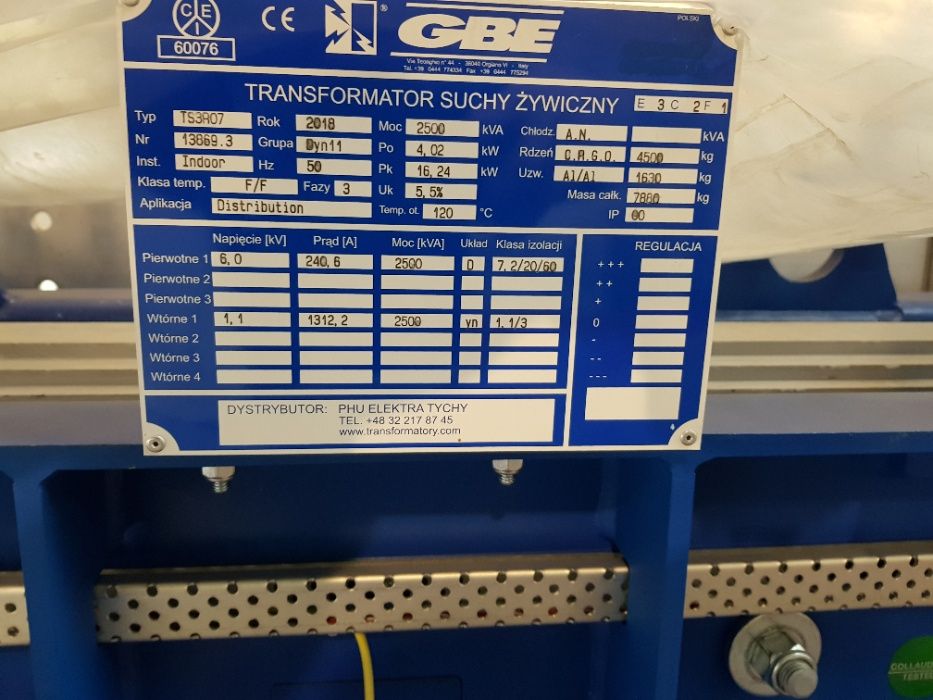

Technical specifications

Quantity1 pce
BrandGBE
TypeTS3R07.2500
Year of Manufacture2018
Basic Transformer DesignCast-Resin
Ingress ProtectionIP00
ApplicationDistribution Transformer
Number of Phasesthree-phase
Winding MaterialAI/AI
Rated Power2500 kVA
CoolingAN
Voltage Ratio6000 / 400 V
HV Ins. Class (Um/AC/LI)7,2/20/60 kV
LV Ins. Class (Um/AC/LI)1,1/3/- kV
Voltage Regulationoff-circuit, bolted links

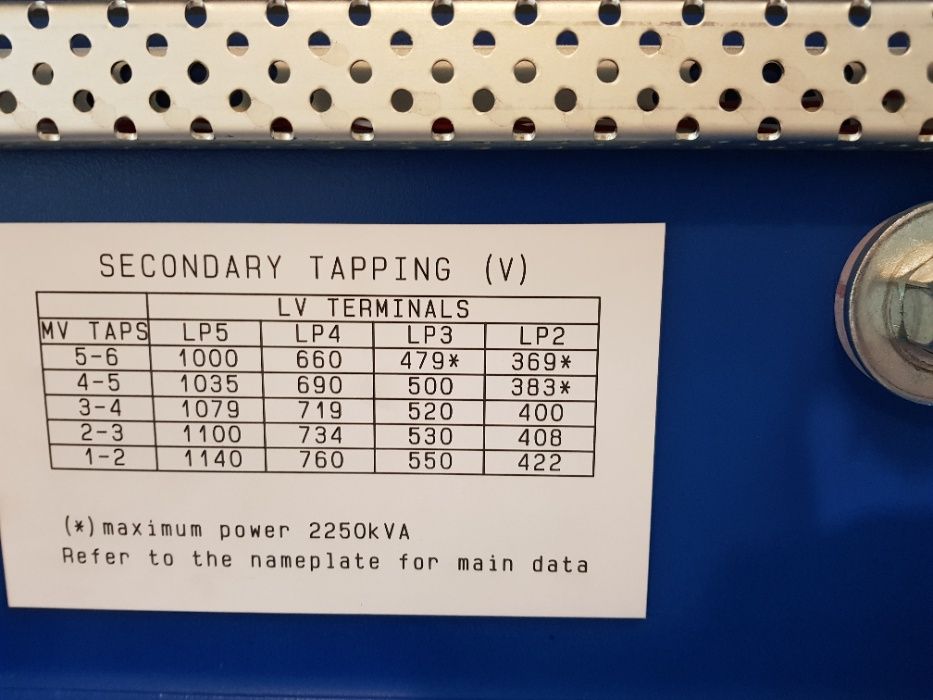

Tapping Range on LV side400-1140 V
Frequency50 Hz
Vector GroupDyn11
StandardsIEC 60076
Total Weight7300 kg
