This product has been sold

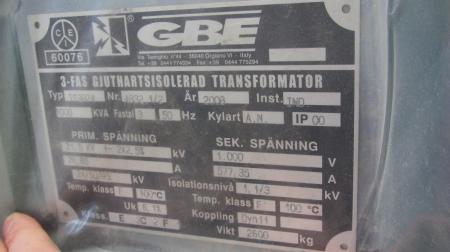

GBE1 MVA 21,5/1 kV

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

Technical specifications

Quantity1 pce
BrandGBE
Year of Manufacture2008
ConditionSecond Hand
Basic Transformer DesignCast Resin
Ingress ProtectionIP00
ClassificationsE2 – C2 – F1
ApplicationDistribution Transformer
Number of PhasesThree-phase
Rated Power1000 kVA
CoolingAN
Voltage Ratio21500 / 1000 V
Prim .Ins. Level (Um/LI/AC)24kV / LI 95/ AC 50
Sec. Ins. Level (Um/LI/AC)1,1 kV / – / AC 3
Voltage Regulationoff-circuit, bolted links
Tapping Range21000/10500 V +-2×2,5%
Temperature Class (HV/LV)Class F / Class F
Frequency50 Hz
Vector GroupDyn11
StandardsIEC 60076-11
Impedance6,1 %
Total Weight (IP00)~2600 kg
