This product has been sold

Merlin Gerin (France Transfo) 2 MVA 20/0,4 kV 2 pcs

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

Technical specifications

Quantity2 pcs

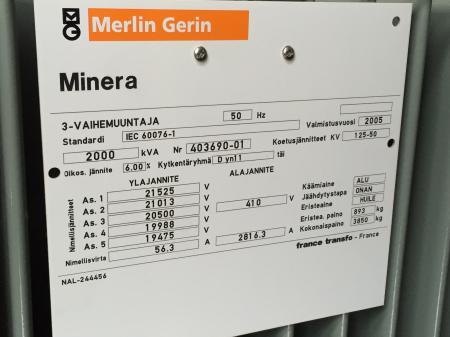

BrandMerlin Gerin (France Transfo)
ConditionSecond Hand
Year of Manufacture2005
ApplicationDistribution Transformer
Basic Transformer ConceptOil-immersed, hermetically sealed
Tank DesignCorrugated tank
Number of Phases3-phase
Type DesignationMinera
Rated Power2000 kVA
Method of CoolingONAN
Voltage Ratio – HV/LV20500 / 410 V
Voltage RegulationOff-circuit tap changer
Tapping Range+-2×2.5%
Frequency50 Hz
Impedance6,0 %
ConnectionDyn11
StandardsIEC 60076-1
Total Weight3890 kg
Weight of Oil893 kg

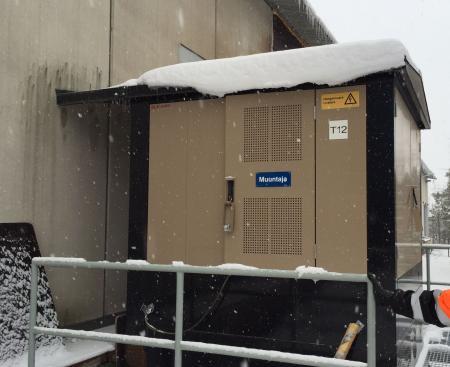

Substation CabinsElkamo Park (optional, may be sold separately)
