This product has been sold

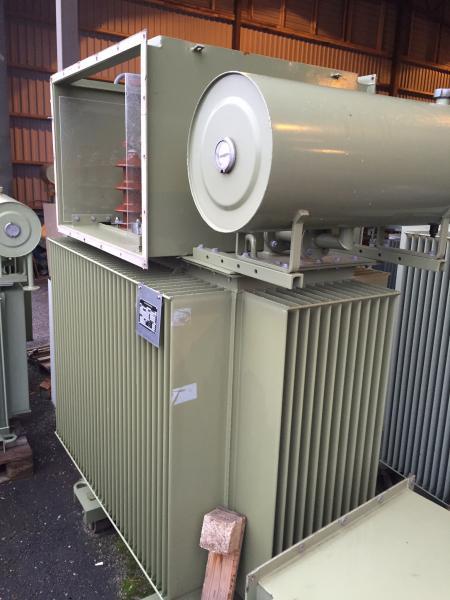

Stromberg 1000 kVA 20/0,4 kV

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

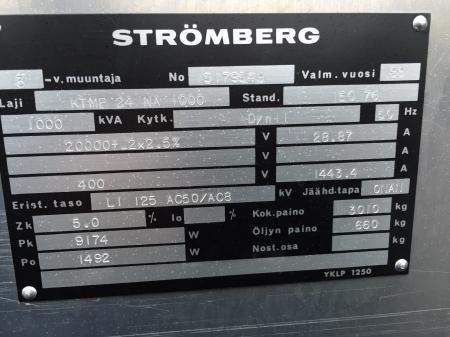

Technical specifications

Quantity1 pce
BrandStromberg
TypeKTMP 24 NA 1000
ConditionSecond Hand
Year of Manufacture1988
ApplicationPower Transformer
Basic Transformer Conceptoil-immersed, conservator type
Tank Designcorrugated tank
Number of Phases3-phase
Rated Power1000 kVA
Method of CoolingONAN
Voltage Ratio – HV/MV/LV20 000/ 400 V
Voltage Regulationoff-circuit tap changer
Tapping Range20000 V +-2×2.5%
Frequency50 Hz
ConnectionDyn11
No-load Losses1492 W
StandardsIEC 60076
Total Weight3010 kg
Weight of Oil660 kg
