This product has been sold

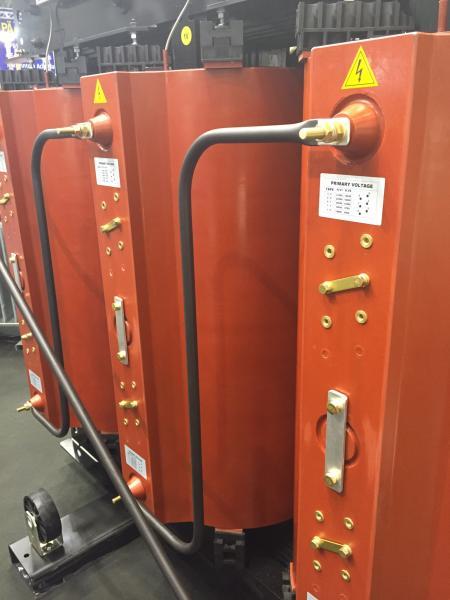

HPS 1 MVA 20(10)/0,4 kV Eco Design

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

Technical specifications

BrandBTB Trafo, HPS Italy
Year of Manufacture2015
ConditionNew Unused
Basic Transformer DesignCast Resin
Ingress ProtectionIP00
ClassificationsC2 – E2 – F1
ApplicationDistribution Transformer, Dual Voltage
Number of PhasesThree-phase
Rated Power1000 kVA
CoolingAN
Voltage Ratio20 000 (10 000)/ 400 V
Prim .Ins. Level (Um/LI/AC)24 kV / LI 95/ AC 50
Sec. Ins. Level (Um/LI/AC)1,1 kV / – / AC 3
Voltage Regulationoff-circuit, bolted links
Tapping Range+-2×2.5%, see table below
Temperature Class (HV/LV)Class F / Class F
Temperature Rise (HV/LV)100/100 K
Frequency50 Hz
Vector GroupD(D)yn11
StandardsIEC 60076-11
Impedance6 %
Total Weigth3352 kg
