This product has been sold

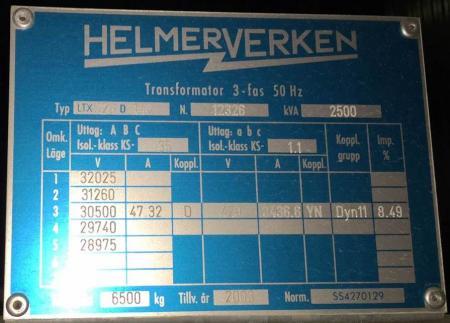

HELMERVERKEN Cast Resin 2,5 MVA 30,5/0,420kV

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

Technical specifications

Quantity1 pce
BrandHelmerverken
Year of Manufacture2003
ConditionSecond Hand
Basic Transformer DesignCast Resin
Ingress ProtectionIP00
ApplicationDistribution Transformer
Number of Phasesthree-phase
Rated Power2500 kVA
CoolingAN
Voltage Ratio30500 / 420 V
Voltage Regulationoff-circuit
Tapping Range+-2×2.5%
Frequency50 Hz
Vector GroupDyn11
StandardsIEC 60076-11
Impedance8,49 %
Total Weigth6500 kg
Outer Dimensions (LxWxH)3000x1500x2800 mm
