This product has been sold

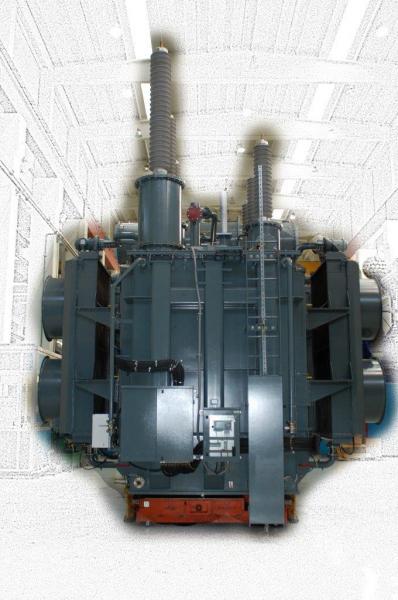

GETRA 250 MVA 230/155 kV

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

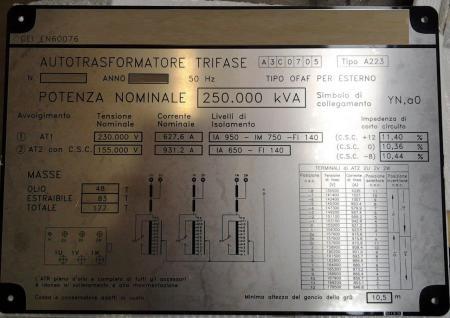

Technical specifications

Quantity1 pce
BrandGETRA
Year of Manufacture2014
ConditionSurplus, unused
ApplicationPower Transformer
Basic Transformer ConceptOil-immersed, conservator tank
Tank DesignRigid tank, detachable cooling radiators
Number of Phases3-phase
Rated Power250 000 kVA
Method of CoolingONAF
Voltage Ratio (prim./sec.)230 000/ 155 000V
Primary Current627,6 A
Secondary Current931,2 A
Voltage RegulationOn-load tap changer (OLTC) in 23 steps
Tapping RangeSee table below for tapping range
Frequency50 Hz
ConnectionYNa0
Total Weight~177 000 kg
Weight of Oil~48 000 kg
