This product has been sold

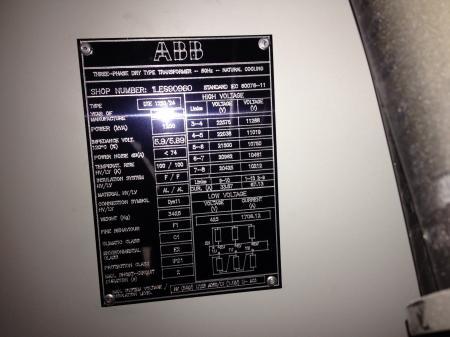

ABB 1250kVA 21,5 (10,75)/0,425kV

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

Technical specifications

Quantity2 pcs
BrandABB, Spain
Year of Manufacture2005
ConditionSecond Hand,
Basic Transformer DesignCast Resin
Ingress ProtectionIP00
ClassificationsE2 – C1 – F1
ApplicationDistribution Transformer
Number of PhasesThree-phase
Rated Power1250 kVA
CoolingAN
Voltage Ratio21500 (10750)/ 425 V
Prim .Ins. Level (Um/LI/AC)24 kV / LI 125 / AC 50
Sec. Ins. Level (Um/LI/AC)1,1 kV / – / AC 3
Voltage Regulationoff-circuit, bolted links
Tapping Range+-2×2.5%, see table below
Temperature Class (HV/LV)Class F / Class F
Temperature Rise (HV/LV)100/100 K
Frequency50 Hz
Vector GroupD(D)yn11
StandardsIEC 60076-11
Impedance5,9/5,89 %
Total Weigth3425 kg
EnclosureIP21
