This product has been sold

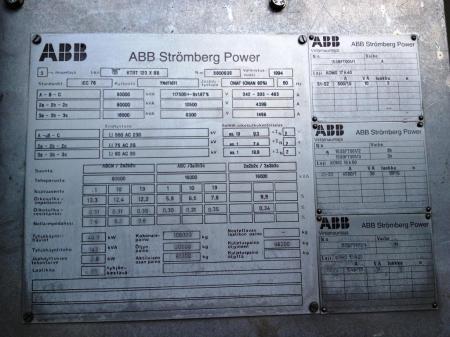

ABB 80MVA 117,5/10,5/6,3 kV

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

Technical specifications

Quantity1 pce
BrandABB
Year of Manufacture1994
ConditionSecond Hand
ApplicationPower Transformer
Basic Transformer Conceptoil-immersed, conservator tank
Tank DesignRigid tank, detachable cooling radiators
Number of Phases3-phase
Rated Power80000/16000 kVA
Method of CoolingONAF/(ONAN 60%)
Voltage Ratio (prim./sec.)117500 /10500 /6 300 V
Primary Current352 – 393 463 A
Secondary Current4399 / 1466 A
Voltage RegulationOn-load tap changer (OLTC)
Tapping Range+-9 taps, +-1,67%, see table below for tapping range
Frequency50 Hz
ConnectionYNd11d11
Total Weight~108 000 kg
Weight of Oil~30 600 kg
