This product has been sold

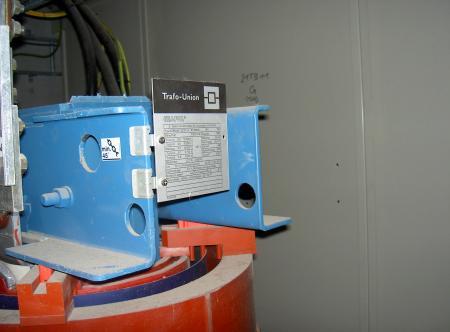

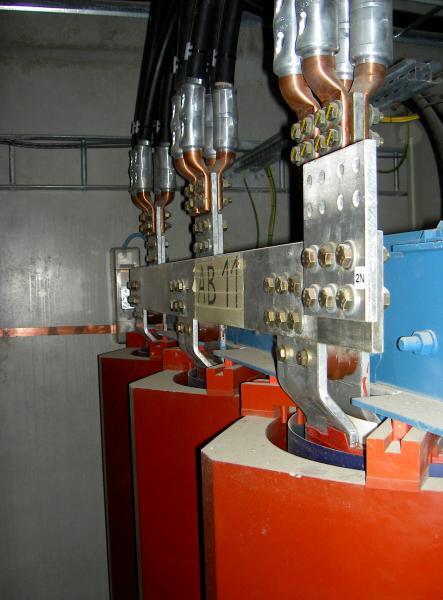

Trafo Union (Siemens) GEAFOL 2.5 MVA 10/0.693 kV

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

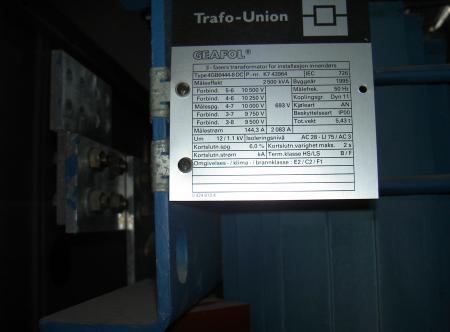

Technical specifications

Quantity3 pcs
BrandTrafo Union (Siemens)
Year of Manufacture1995
ConditionSecond Hand
ClassificationsE2 – C2 – F1
Basic Transformer DesignCast Resin – GEAFOL
Ingress ProtectionIP00
ApplicationDistribution Transformer
Number of Phasesthree-phase
Rated Power2500 kVA
CoolingAN
Voltage Ratio10000 / 693 V
HV Ins. Class (Um/AC/LI)12/28/75 kV
LV Ins. Class (Um/AC/LI)1,1/3/- kV
Voltage Regulationoff-circuit, bolted links
Tapping Range+-2×2.5%
Frequency50 Hz
Vector GroupDyn11
StandardsIEC 726
Impedance6 %
Total Weight5430 kg
