This product has been sold

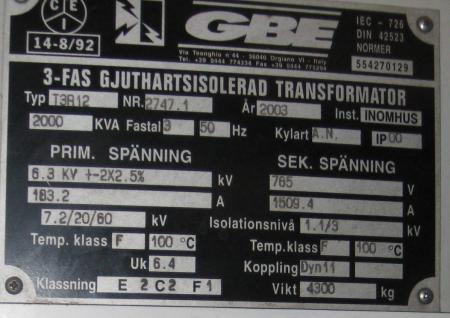

GBE 2 MVA 6300/765 V

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

Technical specifications

Quantity1 pce
BrandGBE
Year of Manufacture2003
ConditionSecond Hand,
Basic Transformer DesignCast Resin
Ingress ProtectionIP00
ClassificationsE2 – C2 – F1
ApplicationDistribution Transformer
Number of Phasesthree-phase
Rated Power2000 kVA
CoolingAN
Voltage Ratio6300 / 765 V
HV Ins. Class (Um/AC/LI)7,2/20/60 kV
LV Ins. Class (Um/AC/LI)1,1/3/- kV
Voltage Regulationoff-circuit, bolted links
Tapping Range+-2×2.5%
Temperature Class (MV/LV)Class F / Class F
Frequency50 Hz
Vector GroupDyn11
StandardsIEC 60076-11
Impedance6,4 %
Total Weigth4300 kg
