This product has been sold

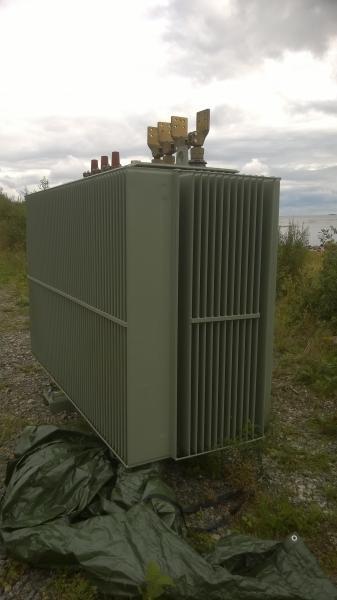

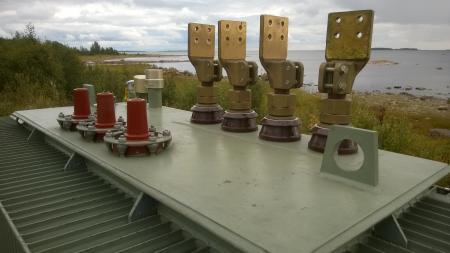

CG 1 pce 3300 kVA, 21000/690 V

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

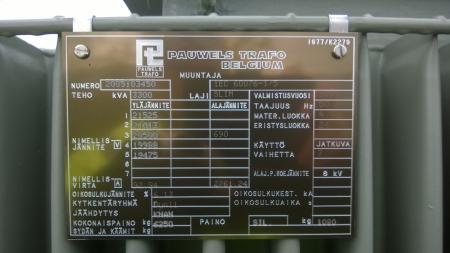

Technical specifications

Rated Power3300 kVA
Rated voltage ratio at no-load21000/690 V
Frequency50 Hz
Vector groupDyn11
CoolingKNAN
Dimensions LxWxH2350x900x2175 mm,
Total weight6280 kg
Year of manufacture2005
