This product has been sold

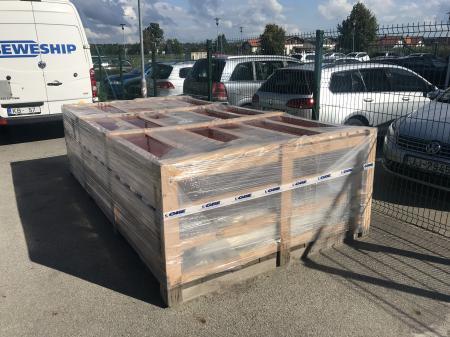

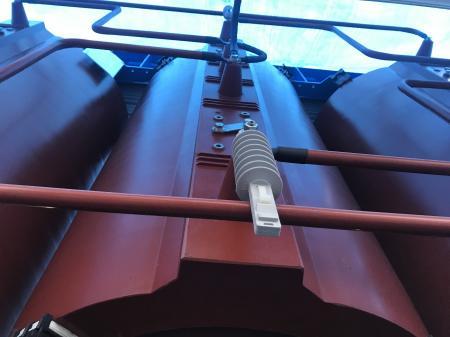

GBE 6,3 MVA 10/10 kV

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

Technical specifications

Quantity1 pce
BrandGBE
Year of Manufacture2018
ConditionSurplus, unused
Basic Transformer DesignCast Resin
Ingress ProtectionIP00
ClassificationsE2 – C2 – F1
ApplicationDistribution Transformer
Number of PhasesThree-phase
Rated Power6300 kVA
CoolingAN
Voltage Ratio10000 / 10000 V
Prim .Ins. Level (Um/LI/AC)12 kV / LI 75 / AC 28
Sec. Ins. Level (Um/LI/AC)1,1 kV / – / AC 3
Voltage Regulationoff-circuit, bolted links
Tapping Range+-2×2.5
Temperature Class (HV/LV)Class F / Class F
Frequency50 Hz
Vector GroupDyn11
StandardsIEC 60076-11
Impedance8 %
Total Weight (IP00)~11980 kg
