France Transfo 1250 kVA 30/0,4 kV

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

Technical specifications

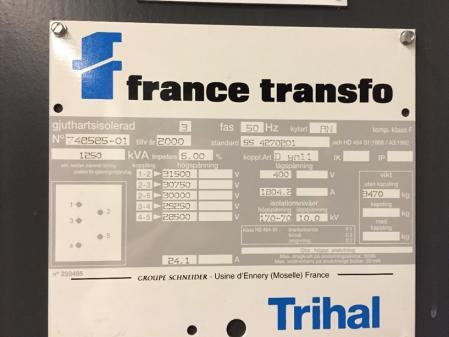

BrandFrance Transfo
Year of Manufacture2000
ConditionUsed
Basic Transformer DesignCast Resin
Ingress ProtectionIP00
ClassificationsC2 – E2 – F1
ApplicationPower Transformer
Number of PhasesThree-phase
Rated Power1250 kVA
CoolingAN
Voltage Ratio30 000/ 400 V
Prim .Ins. Level1,70-70 kV
Sec. Ins. Level10 kV
Voltage Regulationoff-circuit, bolted links
Tapping Range+-2×2.5%, see table below
Temperature Class (HV/LV)Class F / Class F
Temperature Rise (HV/LV)100/100 K
Frequency50 Hz
Vector GroupDyn11
StandardsIEC 60076-11
Impedance6 %
Total Weigth3470kg
