This product has been sold

SIEMENS 2,7 MVA 10,5/0,72 kV

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

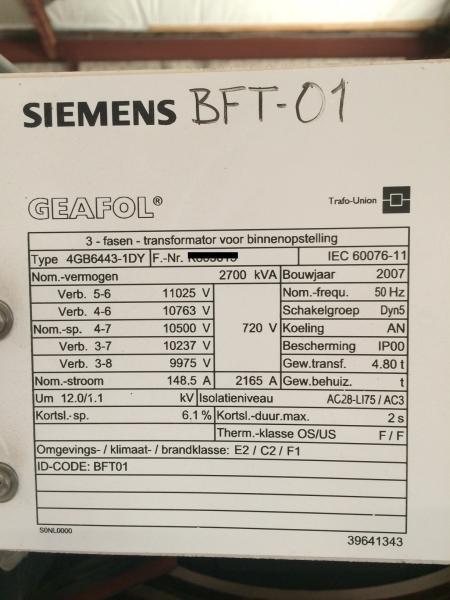

Technical specifications

Quantity1 pce
BrandSiemens – GEAFOL
ConditionUsed
Year of Manufacture2007
ApplicationDistribution Transformer
Basic Transformer ConceptDry-Type Cast Resin
ClassificationE2/C2/F1
Ingress ProtectionIP00
Number of Phases3-phase
Rated Power2700 kVA
Method of CoolingAN
Voltage Ratio – HV/LV10500 / 720 V
Voltage RegulationBolted Links
Tapping Range+-2×2.5%
Frequency50 Hz
Thermal Class (HV/LV)Class F/F
ConnectionDyn5
Impedance6,1%
StandardsIEC 60076-11
Total Weight4800 kg
