This product has been sold

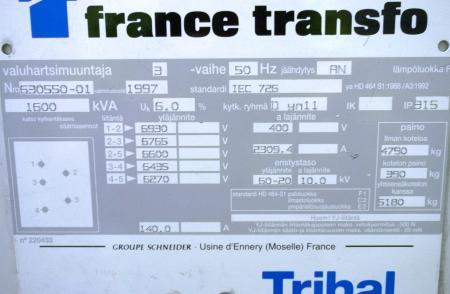

France Transfo 1,6 MVA 6,6/0,4 kV

Request a quote
Print page
Share link
Need help now? Our 24/7 Emergency Service can help

Technical specifications

Quantity1 pce
BrandFrance Transfo, France
Year of Manufacture1997
ConditionSecond Hand
Basic Transformer DesignCast Resin
Ingress ProtectionIP315
ApplicationDistribution Transformer
Number of PhasesThree-phase
Rated Power1600 kVA
CoolingAN
Voltage Ratio6600 / 400 V
Voltage Regulationoff-circuit, bolted links
Tapping Range+-2×2.5%
Temperature ClassClass F
Frequency50 Hz
Vector GroupDyn11
StandardsIEC 60076-11
Impedance6 %
Weight Without Enclosure4790 kg
Total Weight incl. Encl.5180 kg
