| Quantity |
: 1 pce
|

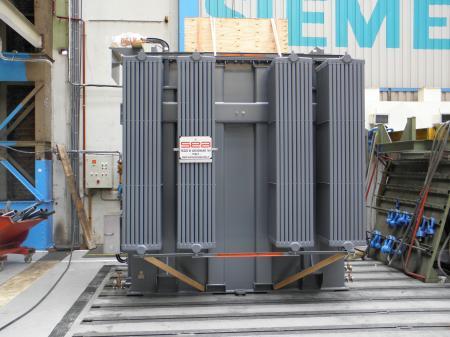

| Basic Design |
: Oil-immersed, conservator type
|
| Number of Phases |
: Three-phase
|
| Application |
: Auto-connected Power Transformer
|
| Number of Windings |
: 1
|
| Rated Power |
: 36000 kVA
|
| Method of Cooling |
: ONAN
|
| Voltage Ratio |
: 33000 / 10000 V
|
| Max allowed fault current |
: 22 kA (RMS for 1 s, 10kV side)
|
| Type of Tap changer |
: Off-circuit tap changer
|
| Tappings Range |
: +-2x2.5% on 11 kV side
|
| HV Ins. Level (Um/AC/LI) |
: 36/70/170 kV
|
| LV Ins. Level (Um/AC/LI) |
: 36/70/170 kV
|
| Connection |
: YNa0 (auto connected)
|
| Frequency |
: 50 Hz
|
| Short Circuit Voltage |
: ~1,3-1.7%
|
| Temperature Rise |
: 60/65 K
|
| Ambient Temperatures |
: -10...+40 deg C
|
| Outer Dimensions (LxWxH) |
: 4307x5336x5449x mm (incl. cable box)
|
| Total Weight |
: 51000 kg
|
| Weight of Oil |
: 8700 kg
|
| Standards |
: IEC 60076 |
