| Quantity |
: 1 pce
|
| Brand |
: Koncar D&ST
|
| Year of Manufacture |
: 2013
|
| Condition |
: Surplus
|
| Application |
: Power Transformer
|
| Basic Transformer Concept |
: Oil-immersed, conservator tank
|
| Tank Design |
: Rigid tank, detachable cooling radiators
|
| Number of Phases |
: 3-phase
|
| Rated Power |
: 18000 kVA
|
| Method of Cooling |
: ONAN
|
| Voltage Ratio (prim./sec.) |
: 57000 / 5500 V
|
| Primary Current |
: 169,6 - 182,3 - 197,1 A
|
| Secondary Current |
: 1889,5 A
|
| Voltage Regulation |
: On-load tap changer (OLTC)
|
| Tapping Range |
: +-3x2,5%, see table below for tapping range
|
| Frequency |
: 50 Hz
|
| Connection |
: YNd5
|
|
|
| Total Weight |
: ~36500 kg
|
| Weight of Oil |
: ~5600 kg
|
|
|

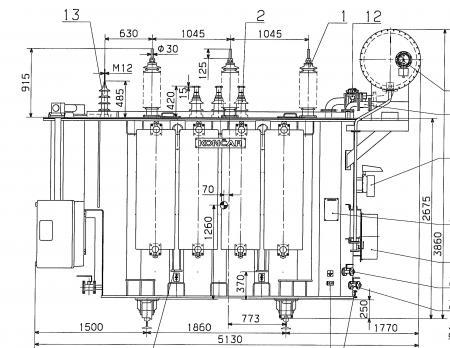

| Further documentation (complete rating plate data etc.) is available and can be sent
|
| upon request!
|
|
|
| Tapping Range |
:
|
|
|
| 1. 61275/5500 V
|
| 2. 59850/5500 V
|
| 3. 58425/5500 V
|
| 4. 57000/5500 V
|
| 5. 55575/5500 V
|
| 6. 54150/5500 V
|
| 7. 52725/5500 V |
